Calico Ingress Gateway with Canary Deployments

Overview

This lab demonstrates Calico's Ingress Gateway feature, which provides Kubernetes Gateway API support for managing ingress traffic. You'll learn how to deploy an Envoy-based ingress gateway, expose services via LoadBalancer, and implement canary deployments with traffic splitting.

Calico Ingress Gateway integrates the Kubernetes Gateway API with Calico networking to provide a powerful, Envoy-based ingress solution. It enables:

Feature	Description
Gateway API Support	Uses standard Kubernetes Gateway API resources
Envoy-based	Leverages Envoy proxy for high-performance traffic management
Traffic Splitting	Route traffic to multiple backends with weighted distribution
Canary Deployments	Gradually roll out new versions with controlled traffic percentages
BGP Integration	Advertise gateway IPs via BGP for external accessibility

What is a Canary Deployment?

A canary deployment is a progressive release strategy where a new version of an application is gradually rolled out to a small subset of users before being fully deployed. This approach allows teams to:

Detect issues early - Problems are caught with minimal user impact
Validate new features - Test functionality with real traffic
Roll back quickly - Revert to stable version if issues arise
Minimize risk - Only a small percentage of users see the new version initially

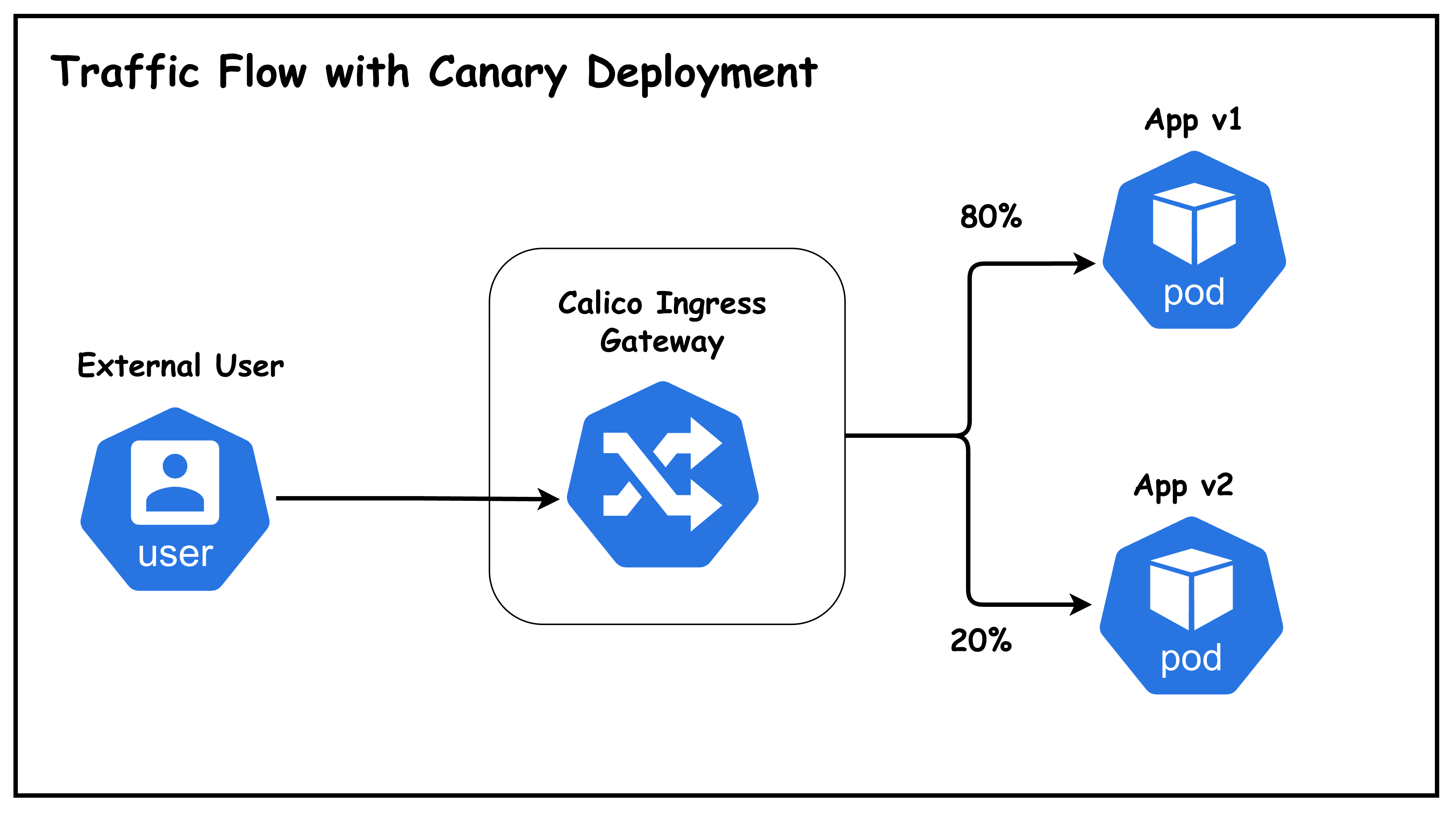

Canary Diagram

Lab Topology

This lab uses a topology with:

5 Kubernetes nodes: 1 control-plane + 4 workers
2 BGP speaker nodes (worker, worker2): Peer with ToR and host the ingress gateway
2 Non-BGP nodes (worker3, worker4): Regular workload nodes
1 Arista cEOS ToR switch: Routes traffic between VLANs
1 External user host: Simulates external clients on VLAN 30

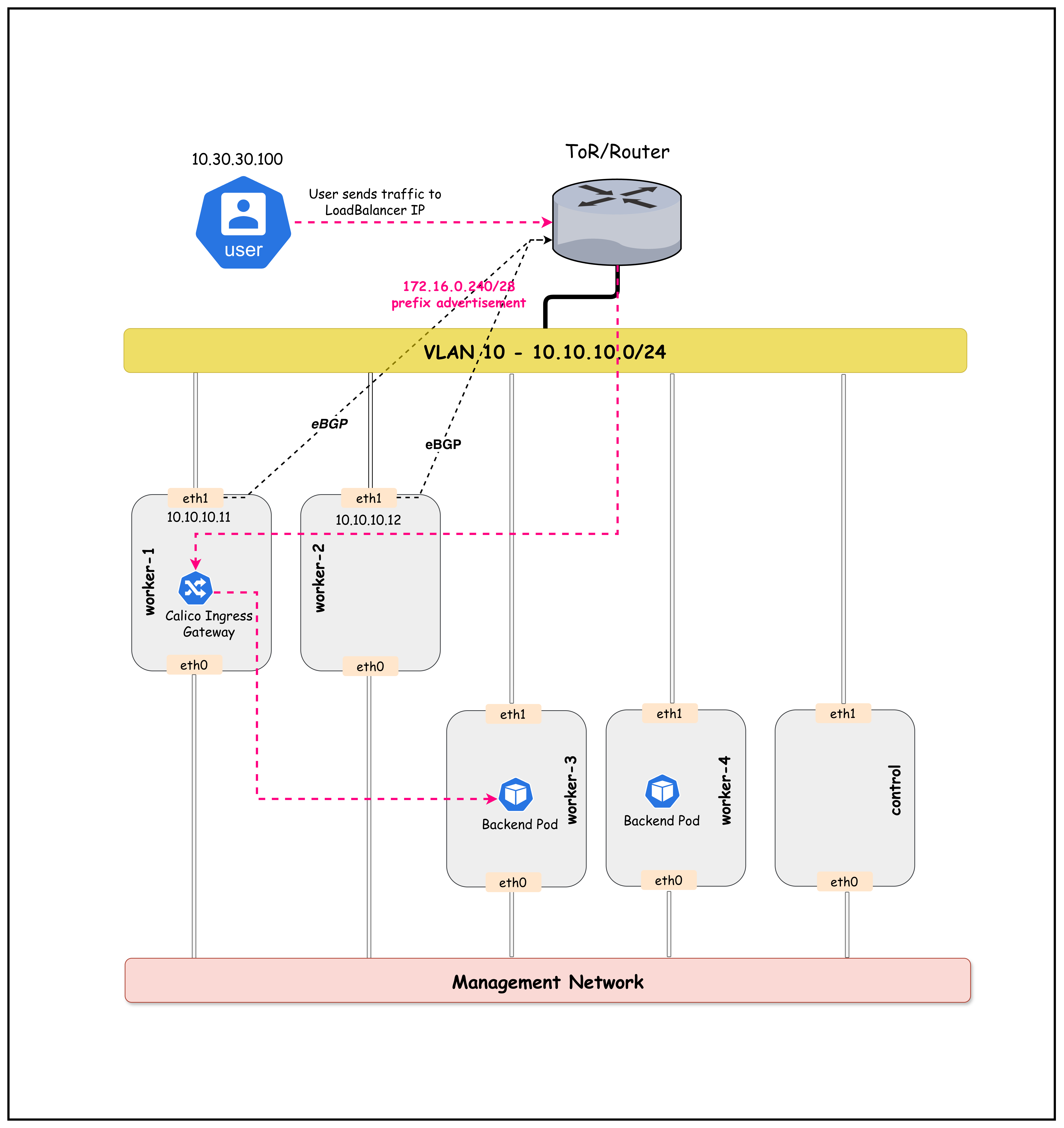

Lab Topology Diagram

Figure: Calico Ingress Gateway Lab Topology

Traffic Flow

External user on VLAN 30 sends HTTP request to Gateway LoadBalancer IP 172.16.0.241
ToR switch has BGP-learned route to 172.16.0.240/28 via worker/worker2
ECMP distributes traffic across both BGP speaker nodes
Envoy Gateway receives traffic and applies HTTPRoute rules
Traffic split: 80% → app-v1 (stable), 20% → app-v2 (canary)
Backend pods (on any node) serve the response

Lab Setup

To setup the lab for this module Lab setup

The lab folder is - /containerlab/19-calico-ingress

Manifest Files

ContainerLab

File	Description
topology.clab.yaml	ContainerLab topology with Arista switch and Kind cluster

Kind Cluster

File	Description
k01-no-cni.yaml	Kind cluster configuration without CNI

Calico CNI

File	Description
calico-cni-config/custom-resources.yaml	Custom Calico Installation resource with IPAM configuration
calico-cni-config/gatewayapi.yaml	Gateway API configuration for Calico
calico-cni-config/bgpconfiguration.yaml	BGP Configuration resource
calico-cni-config/bgppeer.yaml	BGP Peer resource for Arista switch peering

Kubernetes Manifests

File	Description
k8s-manifests/app-v1.yaml	Application v1 deployment and service
k8s-manifests/app-v2.yaml	Application v2 deployment and service
k8s-manifests/gateway.yaml	Gateway resource definition
k8s-manifests/httproute.yaml	HTTPRoute for traffic routing and canary splits
k8s-manifests/reference-grant.yaml	ReferenceGrant for cross-namespace Gateway access
k8s-manifests/lb-ippool.yaml	LoadBalancer IP pool definition

Startup Configs

File	Description
startup-configs/ceos01-startup-config.config	Arista cEOS switch startup configuration

Lab Exercises

Note
The outputs in this section will be different in your lab. When running the commands given in this section, make sure you replace IP addresses, interface names, and node names as per your lab.

1. Deploy the Lab

cd containerlab/19-calico-ingress
chmod +x deploy.sh
./deploy.sh

The deploy script will:

Deploy the ContainerLab topology
Install Calico with BGP configuration
Enable Calico Gateway API (creates GatewayClass)
Deploy demo applications (v1 and v2)

Note
The Gateway, HTTPRoute, and ReferenceGrant resources arenot pre-configured. You will create them manually in this lab to understand how they work together.

2. Set Up Environment

Set the kubeconfig for this lab:

export KUBECONFIG=$(pwd)/k01.kubeconfig

Verify the nodes are ready:

kubectl get nodes -o wide

NAME                STATUS   ROLES           AGE   VERSION   INTERNAL-IP    ...
k01-control-plane   Ready    control-plane   10m   v1.32.2   10.10.10.10    ...
k01-worker          Ready    <none>          9m    v1.32.2   10.10.10.11    ...
k01-worker2         Ready    <none>          9m    v1.32.2   10.10.10.12    ...
k01-worker3         Ready    <none>          9m    v1.32.2   10.10.10.13    ...
k01-worker4         Ready    <none>          9m    v1.32.2   10.10.10.14    ...

3. Verify BGP Peering

Only worker and worker2 (with bgp-peer=true label) should have BGP sessions with the ToR. List the nodes with this label:

kubectl get nodes -l bgp-peer=true

NAME          STATUS   ROLES    AGE   VERSION
k01-worker    Ready    <none>   10m   v1.32.2
k01-worker2   Ready    <none>   10m   v1.32.2

Connect to the cEOS switch to verify BGP sessions:

docker exec -it clab-calico-ingress-ceos01 Cli

Once in the CLI, check the BGP summary:

enable
show ip bgp summary

BGP summary information for VRF default
Router identifier 10.10.10.1, local AS number 65001
  Description              Neighbor    V AS           MsgRcvd   MsgSent  InQ OutQ  Up/Down State   PfxRcd PfxAcc
  "Calico BGP Peer Node 1" 10.10.10.11 4 65010             25        22    0    0 00:10:30 Estab   1      1
  "Calico BGP Peer Node 2" 10.10.10.12 4 65010             25        22    0    0 00:10:30 Estab   1      1

4. Verify Gateway API Components

4.1 Check GatewayAPI Status

The deploy script enabled Calico's Gateway API feature with node placement configuration:

kubectl get gatewayapi

NAME      AGE
default   5m

View the GatewayAPI configuration:

kubectl get gatewayapi default -o yaml

spec:
  gatewayClasses:
    - name: tigera-gateway-class
      gatewayDeployment:
        spec:
          template:
            spec:
              nodeSelector:
                bgp-peer: "true"

Note
ThenodeSelector in the GatewayAPI CR ensures that Envoy Gateway pods are deployed only on BGP peer nodes (worker, worker2). This is important because:

These nodes peer with the ToR switch and can advertise the LoadBalancer IP

Traffic enters through these nodes and is processed by the local Envoy proxy

This aligns the data plane (Envoy) with the BGP advertisement path

4.2 Check GatewayClass

The tigera-gateway-class is automatically created when Gateway API is enabled:

kubectl get gatewayclass

NAME                   CONTROLLER                                      ACCEPTED   AGE
tigera-gateway-class   gateway.envoyproxy.io/gatewayclass-controller   True       5m

Note
At this point, no Gateway resources exist yet. You will create them in the next sections.

5. Verify Application Deployments

Check that the application pods are running:

kubectl get pods -n ingress-gateway-demo -o wide

NAME                      READY   STATUS    RESTARTS   AGE   IP              NODE          ...
app-v1-5b9c7f8c4d-abc12   1/1     Running   0          5m    192.168.x.x     k01-worker3   ...
app-v1-5b9c7f8c4d-def34   1/1     Running   0          5m    192.168.x.x     k01-worker4   ...
app-v2-6c8d9e0f1a-ghi56   1/1     Running   0          5m    192.168.x.x     k01-worker3   ...

Note
The application pods are scheduled onworker3 and worker4 (non-BGP nodes) using node affinity. This separates the workload nodes from the BGP speaker nodes (worker, worker2) that host the ingress gateway.

Verify the services are created:

kubectl get svc -n ingress-gateway-demo

NAME     TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
app-v1   ClusterIP   10.96.x.x       <none>        80/TCP    5m
app-v2   ClusterIP   10.96.x.x       <none>        80/TCP    5m

6. Create Gateway API Resources

Now you'll create the Gateway API resources to enable ingress traffic. This section walks through each resource and explains its purpose.

6.1 Create the Gateway

The Gateway is the entry point for external traffic. It creates an Envoy-based load balancer that listens for HTTP traffic.

First, examine the Gateway manifest:

cat k8s-manifests/gateway.yaml

# Gateway resource that creates an Envoy-based ingress gateway
# The gateway listens on port 80 for HTTP traffic (accepts all hostnames)
# Hostname filtering is done at the HTTPRoute level
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: calico-ingress-gateway
  namespace: default
spec:
  gatewayClassName: tigera-gateway-class
  listeners:
    - name: http
      protocol: HTTP
      port: 80
      allowedRoutes:
        namespaces:
          from: All

Key configuration:

gatewayClassName: tigera-gateway-class - Uses the GatewayClass configured with nodeSelector for BGP peer nodes
No hostname specified - The Gateway accepts requests for any hostname
allowedRoutes.namespaces.from: All - Allows HTTPRoutes from any namespace to attach to this listener
Hostname-based routing is handled at the HTTPRoute level (see next section)

Apply the Gateway:

kubectl apply -f k8s-manifests/gateway.yaml

gateway.gateway.networking.k8s.io/calico-ingress-gateway created

Wait a few seconds for the Gateway to be programmed, then verify it was created:

kubectl get gateway

NAME                      CLASS                  ADDRESS         PROGRAMMED   AGE
calico-ingress-gateway    tigera-gateway-class   172.16.0.241    True         30s

What happened? When the Gateway is created:

Calico deploys Envoy proxy pods in the tigera-gateway namespace
A LoadBalancer service is created with an IP from the BGP-advertised pool
The Envoy is configured to listen on port 80 for all incoming requests

6.2 Create the ReferenceGrant

Before creating the HTTPRoute, you need to create a ReferenceGrant. This is a security mechanism that allows cross-namespace references.

Why is this needed? The HTTPRoute will be in the default namespace, but it needs to route traffic to Services in the ingress-gateway-demo namespace. Without a ReferenceGrant, this cross-namespace reference would be blocked for security reasons.

Examine the ReferenceGrant manifest:

cat k8s-manifests/reference-grant.yaml

# ReferenceGrant allows the HTTPRoute in the default namespace
# to reference Services in the ingress-gateway-demo namespace
apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
  name: allow-gateway-to-demo
  namespace: ingress-gateway-demo   # Lives in the TARGET namespace
spec:
  from:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      namespace: default            # Allow HTTPRoutes FROM default namespace
  to:
    - group: ""
      kind: Service                 # To reference Services in THIS namespace

Key points:

The ReferenceGrant is created in the ingress-gateway-demo namespace (where the Services are)
It grants permission for HTTPRoutes from default namespace to reference Services here
The namespace owner controls who can reference their resources

Apply the ReferenceGrant:

kubectl apply -f k8s-manifests/reference-grant.yaml

referencegrant.gateway.networking.k8s.io/allow-gateway-to-demo created

Verify it was created:

kubectl get referencegrant -n ingress-gateway-demo

NAME                    AGE
allow-gateway-to-demo   10s

6.3 Create the HTTPRoute

Now create the HTTPRoute that defines how traffic should be routed to your backend services. This HTTPRoute implements a canary deployment with 80/20 traffic split.

Examine the HTTPRoute manifest:

cat k8s-manifests/httproute.yaml

# HTTPRoute for traffic splitting between app-v1 (stable) and app-v2 (canary)
# Initial split: 80% to v1 (stable), 20% to v2 (canary)
# Hostname filtering: Only routes requests with Host: app.demo.lab
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: canary-traffic-split
  namespace: default
spec:
  hostnames:
    - "app.demo.lab"                       # Only match requests with this Host header
  parentRefs:
    - name: calico-ingress-gateway         # Attach to our Gateway
      namespace: default
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - name: app-v1
          namespace: ingress-gateway-demo  # Cross-namespace reference (allowed by ReferenceGrant)
          port: 80
          weight: 80                       # 80% of traffic
        - name: app-v2
          namespace: ingress-gateway-demo  # Cross-namespace reference (allowed by ReferenceGrant)
          port: 80
          weight: 20                       # 20% of traffic (canary)

Key configuration:

hostnames: ["app.demo.lab"] - The HTTPRoute only matches requests with this Host header
This is where hostname-based routing is configured (not at the Gateway level)
Requests without the correct Host header will not match this route

Apply the HTTPRoute:

kubectl apply -f k8s-manifests/httproute.yaml

httproute.gateway.networking.k8s.io/canary-traffic-split created

Verify it was created:

kubectl get httproute

NAME                   HOSTNAMES        AGE
canary-traffic-split   ["app.demo.lab"] 10s

6.4 Verify All Resources Are Connected

Now verify that all three resources are properly configured:

echo "=== Gateway ==="
kubectl get gateway

echo ""
echo "=== HTTPRoute ==="
kubectl get httproute

echo ""
echo "=== ReferenceGrant ==="
kubectl get referencegrant -n ingress-gateway-demo

=== Gateway ===
NAME                      CLASS                  ADDRESS         PROGRAMMED   AGE
calico-ingress-gateway    tigera-gateway-class   172.16.0.241    True         2m

=== HTTPRoute ===
NAME                   HOSTNAMES   AGE
canary-traffic-split               1m

=== ReferenceGrant ===
NAME                    AGE
allow-gateway-to-demo   1m

7. Check Gateway LoadBalancer Service

The Gateway created a LoadBalancer service that gets an IP from our BGP-advertised pool:

kubectl get svc -n tigera-gateway

NAME                                            TYPE           CLUSTER-IP     EXTERNAL-IP    PORT(S)        AGE
envoy-default-calico-ingress-gateway-xxxxxxxx   LoadBalancer   10.96.x.x      172.16.0.241   80:3xxxx/TCP   5m

Store the Gateway IP in an environment variable for later use:

GATEWAY_IP=$(kubectl get svc -n tigera-gateway -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')
echo "Gateway LoadBalancer IP: $GATEWAY_IP"

8. Verify BGP Route Advertisement

From the cEOS CLI, verify that the LoadBalancer IP is being advertised: To access the cEOS CLI from your host, use the following command (replace ceos01 with your switch node name if different):

docker exec -it clab-calico-ingress-ceos01 Cli

Once in the CLI, you can run the show ip route command as shown below:

show ip route

VRF: default

Gateway of last resort is not set

 C        10.10.10.0/24
           directly connected, Vlan10
 C        10.30.30.0/24
           directly connected, Vlan30
 B E      172.16.0.240/28 [200/0]
           via 10.10.10.11, Vlan10
           via 10.10.10.12, Vlan10

Key Observation: The LoadBalancer CIDR 172.16.0.240/28 is advertised via both BGP speaker nodes (ECMP).

9. Check HTTPRoute Configuration

List the HTTPRoutes:

kubectl get httproute

NAME                 HOSTNAMES   AGE
canary-traffic-split              5m

View the HTTPRoute details to see the traffic split configuration:

kubectl get httproute canary-traffic-split -o yaml

spec:
  parentRefs:
  - name: calico-ingress-gateway
    namespace: default
  rules:
  - backendRefs:
    - name: app-v1
      namespace: ingress-gateway-demo
      port: 80
      weight: 80
    - name: app-v2
      namespace: ingress-gateway-demo
      port: 80
      weight: 20
    matches:
    - path:
        type: PathPrefix
        value: /

Key Observation: Traffic is split 80% to app-v1 (stable) and 20% to app-v2 (canary).

10. Test from External User Host

Now let's test the ingress gateway from the external user host on VLAN 30.

Important
Since the Gateway is configured with hostnameapp.demo.lab, you must include the Host header in your requests. Without the correct Host header, the Gateway will not route your request.

10.1 Verify User Host Connectivity

Check the user host's IP address:

docker exec -it clab-calico-ingress-user ip addr show eth1

1234: eth1@if1235: <BROADCAST,MULTICAST,UP,LOWER_UP> ...
    inet 10.30.30.100/24 scope global eth1

Verify the routing table includes the path to the LoadBalancer network:

docker exec -it clab-calico-ingress-user ip route

default via 172.20.20.1 dev eth0
10.30.30.0/24 dev eth1 proto kernel scope link src 10.30.30.100
172.16.0.0/16 via 10.30.30.1 dev eth1
172.20.20.0/24 dev eth0 proto kernel scope link src 172.20.20.x

10.2 Test Single Request

Get the Gateway IP and test a single request using the hostname:

GATEWAY_IP=$(kubectl get svc -n tigera-gateway -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')
docker exec -it clab-calico-ingress-user curl -s -H "Host: app.demo.lab" http://$GATEWAY_IP | grep -o "App Version [12]"

App Version 1

The response will vary based on the traffic split.

Note
The-H "Host: app.demo.lab" header is required because:

The Gateway listener is configured for hostname app.demo.lab

The HTTPRoute matches requests with this hostname

Without this header, Envoy won't match any routes and will return a 404

Test without Host header (expected to fail):

docker exec -it clab-calico-ingress-user curl -s http://$GATEWAY_IP

This returns an empty response or 404 because no route matches.

10.3 Test Traffic Distribution

Run multiple requests to observe the traffic split:

GATEWAY_IP=$(kubectl get svc -n tigera-gateway -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')

for i in $(seq 100); do
  docker exec clab-calico-ingress-user curl -s -H "Host: app.demo.lab" http://$GATEWAY_IP | grep -o "App Version [12]"
done | sort | uniq -c

     80 App Version 1
     20 App Version 2

Key Observation: Traffic is distributed approximately 80/20 between v1 and v2, matching our HTTPRoute configuration!

10.4 Detailed Traffic Analysis

For a more detailed view with percentages:

GATEWAY_IP=$(kubectl get svc -n tigera-gateway -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')

for i in $(seq 200); do
  docker exec clab-calico-ingress-user curl -s -H "Host: app.demo.lab" http://$GATEWAY_IP | grep -o "App Version [12]"
done | awk '
/Version 1/ {v1++}
/Version 2/ {v2++}
END {
  total=v1+v2
  printf("Version 1 (Stable): %d (%.1f%%)\nVersion 2 (Canary): %d (%.1f%%)\n",
         v1, v1/total*100, v2, v2/total*100)
}'

Version 1 (Stable): 161 (80.5%)
Version 2 (Canary): 39 (19.5%)

11. Adjust Traffic Split (Canary Progression)

As you gain confidence in the canary version, you can increase its traffic percentage.

11.1 Increase Canary to 50%

Update the HTTPRoute to split traffic 50/50:

kubectl patch httproute canary-traffic-split --type='json' -p='[
  {"op": "replace", "path": "/spec/rules/0/backendRefs/0/weight", "value": 50},
  {"op": "replace", "path": "/spec/rules/0/backendRefs/1/weight", "value": 50}
]'

Verify the change was applied:

kubectl get httproute canary-traffic-split -o jsonpath='{.spec.rules[0].backendRefs}' | jq

[
  {
    "name": "app-v1",
    "namespace": "ingress-gateway-demo",
    "port": 80,
    "weight": 50
  },
  {
    "name": "app-v2",
    "namespace": "ingress-gateway-demo",
    "port": 80,
    "weight": 50
  }
]

11.2 Test New Traffic Distribution

Run the traffic test again to confirm the new 50/50 split:

GATEWAY_IP=$(kubectl get svc -n tigera-gateway -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')

for i in $(seq 100); do
  docker exec clab-calico-ingress-user curl -s -H "Host: app.demo.lab" http://$GATEWAY_IP | grep -o "App Version [12]"
done | sort | uniq -c

     52 App Version 1
     48 App Version 2

11.3 Complete Rollout (100% to v2)

When ready to complete the rollout, send all traffic to v2:

kubectl patch httproute canary-traffic-split --type='json' -p='[
  {"op": "replace", "path": "/spec/rules/0/backendRefs/0/weight", "value": 0},
  {"op": "replace", "path": "/spec/rules/0/backendRefs/1/weight", "value": 100}
]'

Test to confirm all traffic goes to v2:

GATEWAY_IP=$(kubectl get svc -n tigera-gateway -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')

for i in $(seq 10); do
  docker exec clab-calico-ingress-user curl -s -H "Host: app.demo.lab" http://$GATEWAY_IP | grep -o "App Version [12]"
done

App Version 2
App Version 2
App Version 2
App Version 2
App Version 2
App Version 2
App Version 2
App Version 2
App Version 2
App Version 2

12. Rollback (If Needed)

If issues are detected, quickly rollback to the stable version:

kubectl patch httproute canary-traffic-split --type='json' -p='[
  {"op": "replace", "path": "/spec/rules/0/backendRefs/0/weight", "value": 100},
  {"op": "replace", "path": "/spec/rules/0/backendRefs/1/weight", "value": 0}
]'

All traffic now goes to v1 (stable).

13. View Envoy Gateway Pods

The Calico Gateway API deploys Envoy pods to handle ingress traffic:

kubectl get pods -n tigera-gateway

NAME                                                             READY   STATUS    RESTARTS   AGE
envoy-default-calico-ingress-gateway-75f8f111-85dc66bcbb-w55tr   2/2     Running   0          9m34s
envoy-gateway-55dff88856-8fgnt                                   1/1     Running   0          40m

Check which nodes the gateway pods are running on:

kubectl get pods -n tigera-gateway -o wide

NAME                                                             READY   STATUS      RESTARTS   AGE    IP               NODE          NOMINATED NODE   READINESS GATES
envoy-default-calico-ingress-gateway-75f8f111-85dc66bcbb-w55tr   2/2     Running     0          8m9s   192.168.81.67    k01-worker    <none>           <none>
envoy-gateway-55dff88856-8fgnt                                   1/1     Running     0          38m    192.168.81.66    k01-worker    <none>           <none>
tigera-gateway-api-gateway-helm-certgen-f8xdv                    0/1     Completed   0          13s    192.168.209.75   k01-worker3   <none>           <none>

Note
The Envoy pods are running onworker or worker2 (BGP peer nodes) because of the nodeSelector: bgp-peer: "true" configured in the GatewayAPI CR. This ensures that:

Envoy proxies run where BGP routes are advertised

High availability across both BGP speaker nodes can be configured with multiple replicas

Architecture Deep Dive

How Calico Ingress Gateway Works

CIG Relationships

Key Components

Component	Description
GatewayAPI	Calico CRD that enables Gateway API support
GatewayClass	Defines the controller (Envoy Gateway)
Gateway	Creates listener endpoints (Envoy deployment + LoadBalancer service)
HTTPRoute	Defines routing rules, including traffic splitting
ReferenceGrant	Allows cross-namespace service references

Understanding Gateway, HTTPRoute, and ReferenceGrant

These three resources work together to create a complete ingress solution. Understanding their relationship is crucial for configuring Gateway API correctly.

┌─────────────────────────────────────────────────────────────────────────────────────┐
│                   GATEWAY API RESOURCE RELATIONSHIP                                  │
├─────────────────────────────────────────────────────────────────────────────────────┤
│                                                                                     │
│   NAMESPACE: default                          NAMESPACE: ingress-gateway-demo       │
│   ─────────────────────                       ───────────────────────────────       │
│                                                                                     │
│   ┌─────────────────────────┐                                                       │
│   │       Gateway           │                                                       │
│   │  calico-ingress-gateway │                                                       │
│   │  ─────────────────────  │                                                       │
│   │  • Port: 80             │                                                       │
│   │  • Protocol: HTTP       │                                                       │
│   │  • Creates Envoy pods   │                                                       │
│   │  • Gets LoadBalancer IP │                                                       │
│   └───────────┬─────────────┘                                                       │
│               │                                                                     │
│               │ parentRefs                                                          │
│               │                                                                     │
│               ▼                                                                     │
│   ┌─────────────────────────┐                                                       │
│   │      HTTPRoute          │                 ┌─────────────────────────────────┐   │
│   │  canary-traffic-split   │    backendRefs  │       ReferenceGrant            │   │
│   │  ─────────────────────  │ ───────────────►│  allow-gateway-to-demo          │   │
│   │  • Path: /              │  (Cross-NS ref  │  ─────────────────────────────  │   │
│   │  • app-v1: 80% weight   │   requires      │  GRANTS PERMISSION:             │   │
│   │  • app-v2: 20% weight   │   permission)   │  • FROM: HTTPRoute in default   │   │
│   └─────────────────────────┘                 │  • TO: Services in this NS      │   │
│                                               └─────────────────────────────────┘   │
│                                                             │                       │
│                                                             │ Allows access to      │
│                                                             ▼                       │
│                                               ┌─────────────────────────────────┐   │
│                                               │         Services                │   │
│                                               │  ┌─────────┐    ┌─────────┐     │   │
│                                               │  │ app-v1  │    │ app-v2  │     │   │
│                                               │  │ (80%)   │    │ (20%)   │     │   │
│                                               │  └─────────┘    └─────────┘     │   │
│                                               └─────────────────────────────────┘   │
│                                                                                     │
└─────────────────────────────────────────────────────────────────────────────────────┘

Gateway Resource (gateway.yaml)

The Gateway is the entry point for external traffic into the cluster. It defines:

Where to listen: Port 80 with HTTP protocol
Which controller to use: The tigera-gateway-class (Envoy-based)
What gets created: An Envoy deployment and a LoadBalancer service

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: calico-ingress-gateway
  namespace: default
spec:
  gatewayClassName: tigera-gateway-class
  listeners:
    - name: http
      protocol: HTTP
      port: 80

When this Gateway is created, Calico:

Deploys Envoy proxy pods in the tigera-gateway namespace
Creates a LoadBalancer service that gets an IP from the BGP-advertised pool
Configures the Envoy to listen on the specified port

HTTPRoute Resource (httproute.yaml)

The HTTPRoute defines how incoming traffic should be routed to backend services. It:

Attaches to a Gateway via parentRefs
Matches requests based on path, headers, etc.
Routes to backends with optional traffic weights for canary deployments

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: canary-traffic-split
  namespace: default
spec:
  parentRefs:
    - name: calico-ingress-gateway   # References the Gateway
      namespace: default
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - name: app-v1
          namespace: ingress-gateway-demo  # Cross-namespace reference!
          port: 80
          weight: 80
        - name: app-v2
          namespace: ingress-gateway-demo  # Cross-namespace reference!
          port: 80
          weight: 20

Important: Notice that the HTTPRoute is in the default namespace, but it references Services in the ingress-gateway-demo namespace. This cross-namespace reference is not allowed by default for security reasons.

ReferenceGrant Resource (reference-grant.yaml)

The ReferenceGrant is a security mechanism that explicitly authorizes cross-namespace references. It answers the question: "Who is allowed to reference resources in my namespace?"

apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
  name: allow-gateway-to-demo
  namespace: ingress-gateway-demo  # Lives where the target resources are
spec:
  from:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      namespace: default           # Allow HTTPRoutes FROM default namespace
  to:
    - group: ""
      kind: Service               # To reference Services in THIS namespace

Key points about ReferenceGrant:

Aspect	Details
Placement	Must be in the target namespace (where the referenced services live)
Ownership	The namespace owner controls who can reference their resources
Granularity	Can limit by source namespace, resource kind, and target resource type
Security Model	Follows principle of least privilege - no implicit trust between namespaces

Why ReferenceGrant Exists

Without ReferenceGrant, any HTTPRoute in any namespace could route traffic to any Service in any other namespace. This would create serious security issues:

Unauthorized traffic steering: A malicious HTTPRoute could intercept traffic meant for other services
Service discovery exposure: Attackers could probe for services across namespaces
Namespace isolation violation: Namespaces wouldn't provide meaningful security boundaries

ReferenceGrant ensures that the owner of the target namespace must explicitly opt-in to allow cross-namespace references.

How They Work Together

External Request → Gateway (default) → HTTPRoute (default) → ReferenceGrant check → Services (ingress-gateway-demo)
                   │                    │                     │
                   │                    │                     └─ "Is default/HTTPRoute allowed
                   │                    │                         to reference services here?"
                   │                    │                         ✓ Yes (ReferenceGrant exists)
                   │                    │
                   │                    └─ "Route to app-v1 (80%) and app-v2 (20%)
                   │                        in ingress-gateway-demo namespace"
                   │
                   └─ "Accept HTTP traffic on port 80"

Workflow summary:

Gateway accepts incoming traffic on port 80
HTTPRoute (attached to Gateway) evaluates routing rules
HTTPRoute wants to send traffic to Services in another namespace
Gateway API checks for a ReferenceGrant in the target namespace
ReferenceGrant authorizes HTTPRoutes from default to reference Services
Traffic is forwarded to the backend Services

LoadBalancer Integration with BGP

The key to external access is the integration between:

Calico LoadBalancer IPAM: Assigns IPs from the configured pool
BGP Advertisement: Advertises LoadBalancer IPs to the ToR
ECMP: Distributes traffic across multiple BGP speaker nodes

BGP Route Advertisement:

  k01-worker (10.10.10.11)  ─────┐
  (bgp-peer=true)                │
           │                     ▼
           │              ┌─────────────────┐
    Advertises:           │   ToR Switch    │
    172.16.0.240/28       │   (AS 65001)    │
           │              │                 │
           │              │ Routes:         │
  k01-worker2 (10.10.10.12)│ 172.16.0.240/28│
  (bgp-peer=true)         │   via 10.10.11 │──►  Accessible from VLAN 30
           │              │   via 10.10.12 │
           └──────────────└─────────────────┘

Use Cases for Canary Deployments

Use Case	Description
Feature Rollouts	Safely release new features to a subset of users
Performance Testing	Evaluate new version under real traffic
Bug Detection	Catch critical bugs with minimal user impact
A/B Testing	Compare different versions for metrics/engagement
Compliance	Gradual rollout in regulated environments

Summary

This lab demonstrated Calico's Ingress Gateway with canary deployment capabilities:

Aspect	Configuration
Gateway Type	Envoy-based via Gateway API
External Access	LoadBalancer with BGP advertisement
Traffic Management	HTTPRoute with weighted backends
Initial Split	80% stable, 20% canary
Progression	Adjustable via kubectl patch
Rollback	Instant by changing weights

Key Takeaways:

Standard Gateway API: Uses Kubernetes-native Gateway API resources
BGP Integration: LoadBalancer IPs are advertised to external networks
Flexible Traffic Control: Easily adjust traffic split percentages
Zero-downtime Rollouts: Gradually shift traffic without service interruption
Quick Rollback: Instantly revert by changing HTTPRoute weights

Troubleshooting

Gateway Not Getting IP

If the Gateway doesn't get a LoadBalancer IP:

# Check if IPPool exists
kubectl get ippools

# Check BGPConfiguration for serviceLoadBalancerIPs
kubectl get bgpconfiguration default -o yaml

# Check for any events
kubectl describe gateway calico-ingress-gateway

Traffic Not Reaching Backend

If traffic doesn't reach the backend services:

# Check ReferenceGrant exists
kubectl get referencegrant -n ingress-gateway-demo

# Check HTTPRoute status
kubectl describe httproute canary-traffic-split

# Check Envoy pods are running
kubectl get pods -n tigera-gateway
kubectl logs -n tigera-gateway -l gateway.envoyproxy.io/owning-gateway-name=calico-ingress-gateway

BGP Routes Not Advertised

If LoadBalancer IP is not reachable from external network:

# Check BGP sessions on cEOS
docker exec -it clab-calico-ingress-ceos01 Cli -c "show ip bgp summary"

# Check routes on cEOS
docker exec -it clab-calico-ingress-ceos01 Cli -c "show ip route"

# Check Calico BGP status
calicoctl node status

Lab Cleanup

To cleanup the lab follow steps in Lab cleanup

Or run:

chmod +x destroy.sh
./destroy.sh

Calico Ingress

Calico Ingress Gateway with Canary Deployments

Overview

Lab Topology

Lab Setup

Manifest Files

Lab Exercises

1. Deploy the Lab

3. Verify BGP Peering

4. Verify Gateway API Components

5. Verify Application Deployments

6. Create Gateway API Resources

7. Check Gateway LoadBalancer Service

8. Verify BGP Route Advertisement

9. Check HTTPRoute Configuration

10. Test from External User Host

11. Adjust Traffic Split (Canary Progression)

Architecture Deep Dive

Understanding Gateway, HTTPRoute, and ReferenceGrant

Use Cases for Canary Deployments

Summary

Troubleshooting

Lab Cleanup

Explore more lessons

NodeLocal DNSCache

MTU Configuration

Ingress TLS

Calico IPAM

Pod Networking

Pod Routing Across Nodes

Kubernetes Services - ClusterIP

Kubernetes DNS

Calico Overlay Networks

Calico BGP

LoadBalancer & BGP Advertisements

Multiple IPPools

Advertise IPPool via BGP

Headless Services

Network QoS - Bandwidth Limiting

WireGuard Encryption

IPv4 & IPv6 Dual-Stack

Selective BGP Peering

Static IPs for Pods
