Calico Multiple IPPools
This lab demonstrates how multiple IP pools can be configured in Calico for advanced network segmentation and IP address management. Multiple IP pools are typically used in scenarios where you want to demarcate workloads in the cluster.
Overview

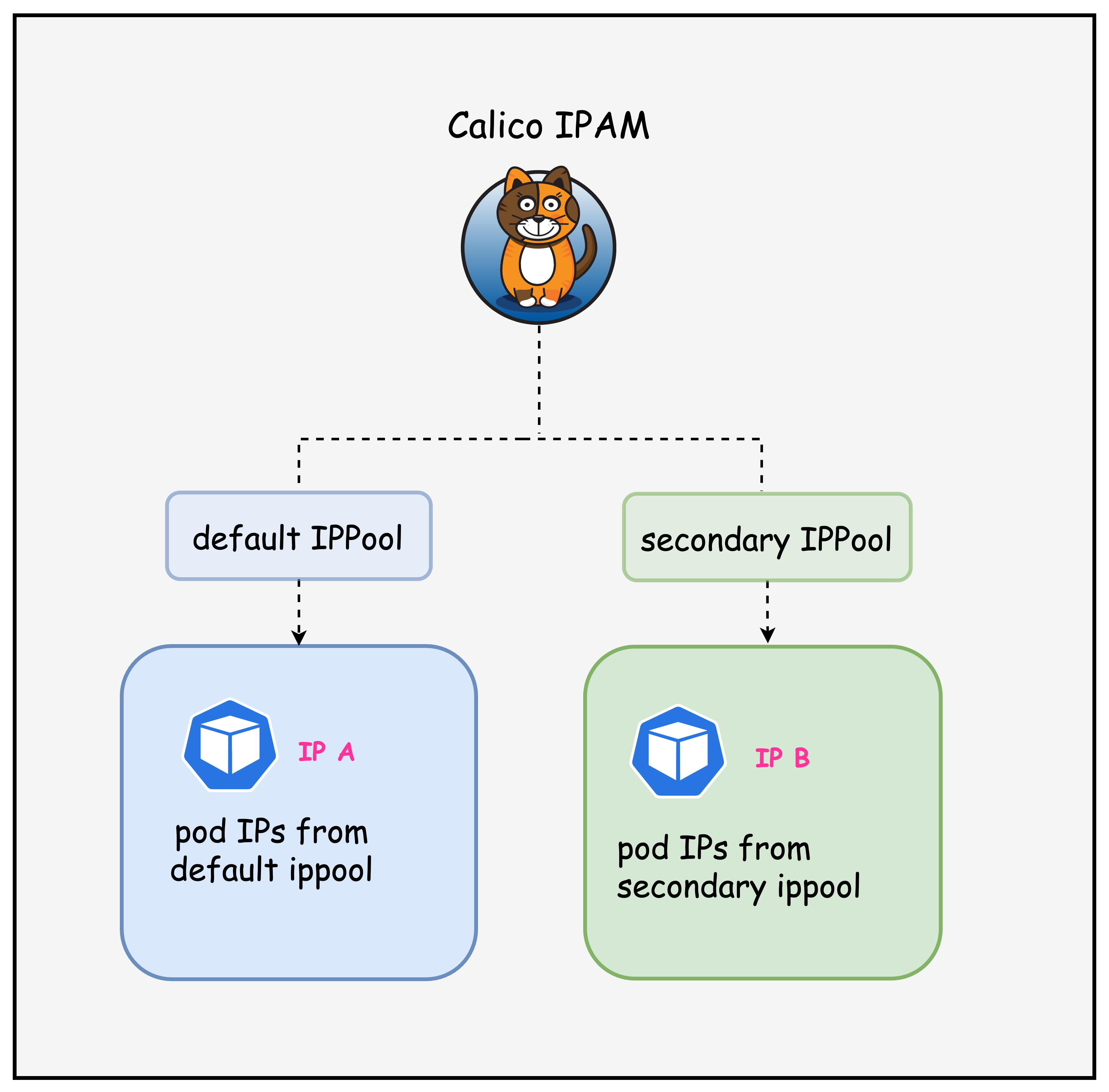

In this lab, we will look at how multiple IP pools can be used to allocate IP addresses to pods in the cluster as outlined in the diagram below.
Lab Setup
To setup the lab for this module Lab setup
The lab folder is - /containerlab/09-multi-ippool
Manifest Files
ContainerLab
| File | Description |
|---|---|
| topology.clab.yaml | ContainerLab topology with Arista switch and Kind cluster |
Kind Cluster
| File | Description |
|---|---|
| k01-no-cni.yaml | Kind cluster configuration without CNI |
Calico CNI
| File | Description |
|---|---|
| calico-cni-config/custom-resources.yaml | Custom Calico Installation resource with dual IP pool configuration |
| calico-cni-config/bgpconfiguration-lb.yaml | BGP Configuration with LoadBalancer advertisement |
| calico-cni-config/bgpconfiguration-no-lb.yaml | BGP Configuration without LoadBalancer advertisement |
| calico-cni-config/bgppeer.yaml | BGP Peer resource for Arista switch peering |
Kubernetes Manifests
| File | Description |
|---|---|
| k8s-manifests/lb-ippool.yaml | LoadBalancer IP pool definition |
| k8s-manifests/lb-nginx-service.yaml | LoadBalancer type service for nginx |
Tools
| File | Description |
|---|---|
| tools/multitool-1.yaml | First multitool DaemonSet |
| tools/multitool-2.yaml | Second multitool DaemonSet with secondary IP pool annotation |
| tools/nginx-deployment.yaml | Nginx deployment manifest |
Startup Configs
| File | Description |
|---|---|
| startup-configs/ceos01-startup-config.config | Arista cEOS switch startup configuration |
Lab Exercises
NoteThe outputs in this section will be different in your lab. When running the commands given in this section, make sure you replace IP addresses, interface names, and node names as per your lab.
1. Inspect ContainerLab Topology
First, let's inspect the lab topology.
containerlab inspect topology.clab.yaml
| Name | Kind | Image | State | IPv4 Address | IPv6 Address |
|------------------------|---------------|----------------------|---------|--------------|----------------------|
| k01-control-plane | ext-container | kindest/node:v1.32.2 | running | 172.18.0.2 | fc00:f853:ccd:e793::2 |
| k01-worker | ext-container | kindest/node:v1.32.2 | running | 172.18.0.3 | fc00:f853:ccd:e793::3 |
| k01-worker2 | ext-container | kindest/node:v1.32.2 | running | 172.18.0.4 | fc00:f853:ccd:e793::4 |
| clab-calico-bgp-ceos01 | arista_ceos | ceos:4.34.0F | running | 172.20.20.2 | 3fff:172:20:20::2 |
| k01-control-plane | k8s-kind | kindest/node:v1.32.2 | running | 172.18.0.2 | fc00:f853:ccd:e793::2 |
| k01-worker | k8s-kind | kindest/node:v1.32.2 | running | 172.18.0.3 | fc00:f853:ccd:e793::3 |
| k01-worker2 | k8s-kind | kindest/node:v1.32.2 | running | 172.18.0.4 | fc00:f853:ccd:e793::4 |
Next, let's inspect the lab topology: First, export the kube.config file.
export KUBECONFIG=/home/ubuntu/containerlab/9-multi-ippool/k01.kubeconfig
Verify the cluster nodes.
kubectl get nodes
NAME STATUS ROLES AGE VERSION
k01-control-plane Ready control-plane 18m v1.32.2
k01-worker Ready <none> 17m v1.32.2
k01-worker2 Ready <none> 17m v1.32.2
NoteWe are utilizing the same lab topology as the previous BGP lab that can be found hereLab setup
2. Inspect IP Pools
2.1 Verify the multiple IP pools configured in the installation resource
The following IP pools were configured in the installation resource. The installation resource can be found in the following file. custom-resources.yaml
ipPools:
- name: default-ipv4-ippool
blockSize: 26
cidr: 192.168.0.0/17
encapsulation: VXLANCrossSubnet
natOutgoing: Enabled
nodeSelector: all()
disableBGPExport: true
- name: secondary-ipv4-ippool
blockSize: 26
cidr: 192.168.128.0/17
encapsulation: VXLANCrossSubnet
natOutgoing: Enabled
nodeSelector: "!all()"
disableBGPExport: true
In this installation resource, there are two IP pools - default IP pool and a secondary IP pool. The secondary IP pool has a node select of "!all()" which means that this IP pool will not be utilized unless a workload resource has specifically requested IPs from this pool.
Next, let's inspect IP pools.
kubectl get ippools
default-ipv4-ippool 2025-10-06T20:11:19Z
loadbalancer-ip-pool 2025-10-06T20:12:45Z
secondary-ipv4-ippool 2025-10-06T20:11:19Z
Notice that there is a default and a secondary IP pool. You can ignore the load balance IP pool for this lab.
2.2 Verify the IPAM block affinities
kubectl get blockaffinities
kubectl get blockaffinities
NAME CREATED AT
k01-control-plane-192-168-69-0-26 2025-10-06T20:11:50Z
k01-worker-192-168-42-192-26 2025-10-06T20:11:53Z
k01-worker2-192-168-88-192-26 2025-10-06T20:11:50Z
load-balancer-172-16-0-240-28 2025-10-06T20:12:45Z
Note that the block affinities are only assigned from the primary IP pool, which means that the secondary IP pool is not considered for IPAM allocation. This also indicates that currently, there are no workloads that have requested IP addresses from the secondary IP pool.
The manifest for the workloads deployed in this lab can be found in this directory - tools
2.3 Verify workload IPs
kubectl get pods -n default -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
multitool-1-2f7vl 1/1 Running 0 30s 192.168.42.194 k01-worker <none> <none>
multitool-1-n4669 1/1 Running 0 30s 192.168.69.2 k01-control-plane <none> <none>
multitool-1-svf7t 1/1 Running 0 30s 192.168.88.200 k01-worker2 <none> <none>
multitool-2-hmhh2 1/1 Running 0 29s 192.168.69.3 k01-control-plane <none> <none>
multitool-2-kcv8c 1/1 Running 0 29s 192.168.88.201 k01-worker2 <none> <none>
multitool-2-m22jw 1/1 Running 0 29s 192.168.42.195 k01-worker <none> <none>
nginx-deployment-67d6b95dd8-648sk 1/1 Running 0 29s 192.168.88.203 k01-worker2 <none> <none>
nginx-deployment-67d6b95dd8-rzjt8 1/1 Running 0 29s 192.168.42.197 k01-worker <none> <none>
Notice that all pod IPs are from the default IP pool. This is because the secondary IP pool has a node select of "!all()" Which prevents it from being allocated to pods unless specified.
3. Using the secondary IP Pool
Let's modify the multitool-2 daemonset so that it receives IP addresses from the secondary IP pool.
3.1 Annotate Workload to use the secondary IP pool
Apply the following annotation to the multitool-2 daemonset. This instructs Calico to allocate IP addresses to these pods from the secondary IP pool.
kubectl patch daemonset multitool-2 -p '{"spec":{"template":{"metadata":{"annotations":{"cni.projectcalico.org/ipv4pools":"[\"secondary-ipv4-ippool\"]"}}}}}'
daemonset.apps/multitool-2 patched
This is what the annotation would look like in the manifest file.
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: multitool-2
namespace: default
labels:
app: multitool-2
spec:
selector:
matchLabels:
app: multitool-2
template:
metadata:
labels:
app: multitool-2
annotations:
cni.projectcalico.org/ipv4pools: '["secondary-ipv4-ippool"]'
REDACTED
3.2 Verify workload IPs
Once the change is applied, the multitool-2 pods should restart and now have an IP address from the secondary IP pool. This is shown in the output below.
kubectl get pods -n default -o wide
kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
multitool-1-2f7vl 1/1 Running 0 6m38s 192.168.42.194 k01-worker <none> <none>
multitool-1-n4669 1/1 Running 0 6m38s 192.168.69.2 k01-control-plane <none> <none>
multitool-1-svf7t 1/1 Running 0 6m38s 192.168.88.200 k01-worker2 <none> <none>
multitool-2-rxh2b 1/1 Running 0 27s 192.168.216.192 k01-worker2 <none> <none>
multitool-2-tc274 1/1 Running 0 24s 192.168.170.192 k01-worker <none> <none>
multitool-2-xwzrw 1/1 Running 0 31s 192.168.197.0 k01-control-plane <none> <none>
nginx-deployment-67d6b95dd8-648sk 1/1 Running 0 6m37s 192.168.88.203 k01-worker2 <none> <none>
nginx-deployment-67d6b95dd8-rzjt8 1/1 Running 0 6m37s 192.168.42.197 k01-worker <none> <none>
Next, let's also look at the block affinities, specifically, to verify that IPAM blocks from the secondary IP pool have been allocated to the nodes.
kubectl get blockaffinities
kubectl get blockaffinities
NAME CREATED AT
k01-control-plane-192-168-197-0-26 2025-10-06T20:18:53Z
k01-control-plane-192-168-69-0-26 2025-10-06T20:11:50Z
k01-worker-192-168-170-192-26 2025-10-06T20:19:00Z
k01-worker-192-168-42-192-26 2025-10-06T20:11:53Z
k01-worker2-192-168-216-192-26 2025-10-06T20:18:57Z
k01-worker2-192-168-88-192-26 2025-10-06T20:11:50Z
load-balancer-172-16-0-240-28 2025-10-06T20:12:45Z
Given that we have workloads that have requested IP addresses from the secondary IP pool Calico has now assigned IP blocks to the nodes so that these workload can obtain IP addresses.
Summary
This lab demonstrated how to configure and use multiple IP pools in Calico for advanced IP address management (IPAM) in Kubernetes. The lab built upon the previous BGP lab topology and focused on segregating pod IP allocations using different IP address ranges.
The following key concepts were covered.
-
Dual IP Pool Configuration:
- Primary pool:
192.168.0.0/17(default allocation for all workloads) - Secondary pool:
192.168.128.0/17(on-demand allocation only)
- Primary pool:
-
Node Selector Strategy: The secondary pool uses
nodeSelector: "!all()"to prevent automatic allocation unless explicitly requested by workloads through annotations -
Workload-Specific IP Pool Assignment: Using Calico annotations (
cni.projectcalico.org/ipv4pools) to force specific pods to receive IPs from the secondary pool -
IPAM Block Affinity Verification: Observed how Calico dynamically allocates IP blocks to nodes only when workloads request IPs from specific pools
Lab Cleanup
to cleanup the lab follow steps in Lab cleanup
