Kubernetes DNS

This hands-on tutorial explains how DNS works inside a Kubernetes cluster and why it matters for service discovery and connectivity. You'll see how kubelet configures Pod DNS (/etc/resolv.conf), how CoreDNS provides cluster name resolution, and how Pods perform lookups for Services, Pods, and external domains. The lab uses a small cluster so you can inspect CoreDNS, tweak settings, run dig/nslookup from Pods, and troubleshoot common DNS issues step by step.

Overview

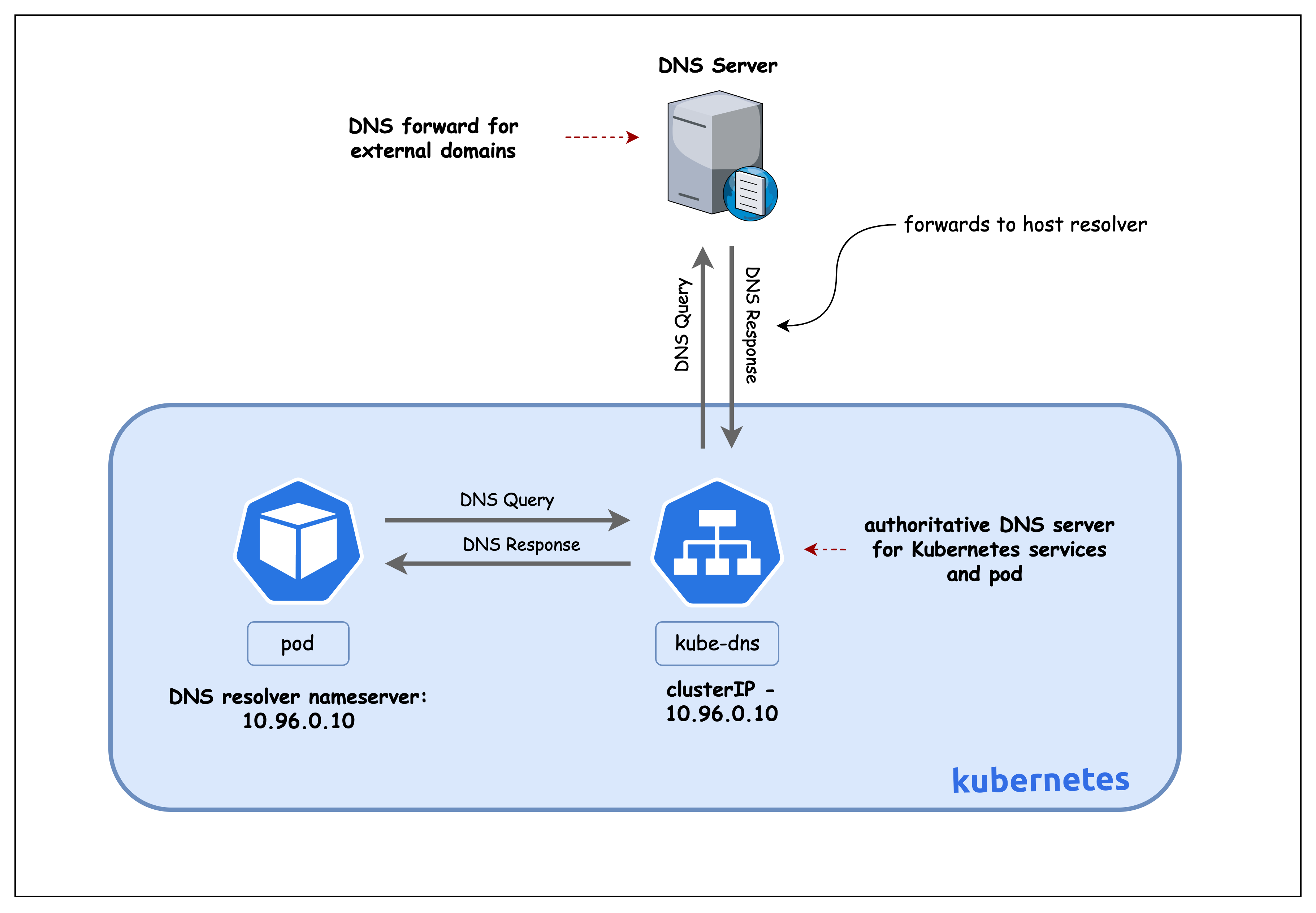

In Kubernetes, DNS is a foundational service that enables reliable service-to-service communication and simplifies how applications discover each other

• Enables service discovery and name resolution inside the cluster.
• Pods use DNS names (not hard-coded IPs) because Pod/Service IPs change with scaling and restarts.
• Kubelet configures each Pod's /etc/resolv.conf to use the cluster DNS Service (CoreDNS via kube-dns).
• Adds cluster search domains (e.g., <ns>.svc.cluster.local) so short names like nginx resolve to nginx.<ns>.svc.cluster.local.
• CoreDNS answers queries for Services and Pods and forwards unknown domains to upstream resolvers.
• Supports both in-cluster lookups (service discovery) and external DNS resolution from Pods.

Lab Setup

To setup the lab for this module Lab setup The lab folder is - /containerlab/05-k8s-dns

Manifest Files

ContainerLab

File	Description
k8s-dns.clab.yaml▸	ContainerLab topology defining the Kind cluster

Kind Cluster

File	Description
k8s-dns-no-cni.yaml▸	Kind cluster configuration without CNI

Calico CNI

File	Description
calico-cni-config/custom-resources.yaml▸	Custom Calico Installation resource with IPAM configuration

Tools

File	Description
tools/multitool-1.yaml▸	First multitool DaemonSet in default namespace
tools/multitool-2.yaml▸	Second multitool DaemonSet in default namespace
tools/multitool-3.yaml▸	Third multitool DaemonSet in foo namespace
tools/nginx-deployment.yaml▸	Nginx deployment with ClusterIP service

Lab Exercises

After deployment, verify the cluster is ready by checking the ContainerLab topology status:

1. Inspect ContainerLab Topology

containerlab inspect k8s-dns.clab.yaml

20:54:11 INFO Parsing & checking topology file=k8s-dns.clab.yaml
╭───────────────────────┬──────────────────────┬─────────┬───────────────────────╮
│          Name         │      Kind/Image      │  State  │     IPv4/6 Address    │
├───────────────────────┼──────────────────────┼─────────┼───────────────────────┤
│ k8s-dns-control-plane │ k8s-kind             │ running │ 172.18.0.3            │
│                       │ kindest/node:v1.28.0 │         │ fc00:f853:ccd:e793::3 │
├───────────────────────┼──────────────────────┼─────────┼───────────────────────┤
│ k8s-dns-worker        │ k8s-kind             │ running │ 172.18.0.4            │
│                       │ kindest/node:v1.28.0 │         │ fc00:f853:ccd:e793::4 │
├───────────────────────┼──────────────────────┼─────────┼───────────────────────┤
│ k8s-dns-worker2       │ k8s-kind             │ running │ 172.18.0.2            │
│                       │ kindest/node:v1.28.0 │         │ fc00:f853:ccd:e793::2 │
╰───────────────────────┴──────────────────────┴─────────┴───────────────────────╯

2. Verify pods and services in the default namespace

# Set kubeconfig to use the cluster
export KUBECONFIG=/home/ubuntu/containerlab/5-k8s-dns/k8s-dns.kubeconfig

# Check cluster nodes
kubectl get pods -o wide

NAME                                READY   STATUS    RESTARTS   AGE
multitool-1-8c8fb                   1/1     Running   0          6d3h
multitool-1-dv8fz                   1/1     Running   0          6d3h
multitool-1-fc2fx                   1/1     Running   0          6d3h
multitool-2-dscdh                   1/1     Running   0          6d3h
multitool-2-ssdks                   1/1     Running   0          6d3h
multitool-2-sxdn2                   1/1     Running   0          6d3h
nginx-deployment-55d7bb4b86-jq7zp   1/1     Running   0          6d3h
nginx-deployment-55d7bb4b86-lsm9c   1/1     Running   0          6d3h

3. Verify Cluster DNS Setup

In this section, we verify that cluster DNS is up and correctly configured by checking the kube-dns Service (the IP Pods use as their nameserver) and inspecting the CoreDNS Corefile that defines how in‑cluster names are resolved and how external queries are forwarded.

3.1 Verify kube-dns service

kubectl get services -n kube-system

NAME       TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)                  AGE
kube-dns   ClusterIP   10.96.0.10   <none>        53/UDP,53/TCP,9153/TCP   6h41m

Explanation: Confirms the in-cluster DNS Service (kube-dns) is running as a ClusterIP at 10.96.0.10. Pods use this IP as their DNS nameserver on ports 53/UDP and 53/TCP; 9153/TCP exposes CoreDNS Prometheus metrics.

Next lets check the endpoints backing this service

kubectl describe endpoints kube-dns -n kube-system

Name:         kube-dns
Namespace:    kube-system
Labels:       k8s-app=kube-dns
              kubernetes.io/cluster-service=true
              kubernetes.io/name=CoreDNS
Annotations:  endpoints.kubernetes.io/last-change-trigger-time: 2025-09-13T17:37:18Z
Subsets:
  Addresses:          192.168.206.6,192.168.206.7
  NotReadyAddresses:  <none>
  Ports:
    Name     Port  Protocol
    ----     ----  --------
    dns-tcp  53    TCP
    dns      53    UDP
    metrics  9153  TCP

Events:  <none>

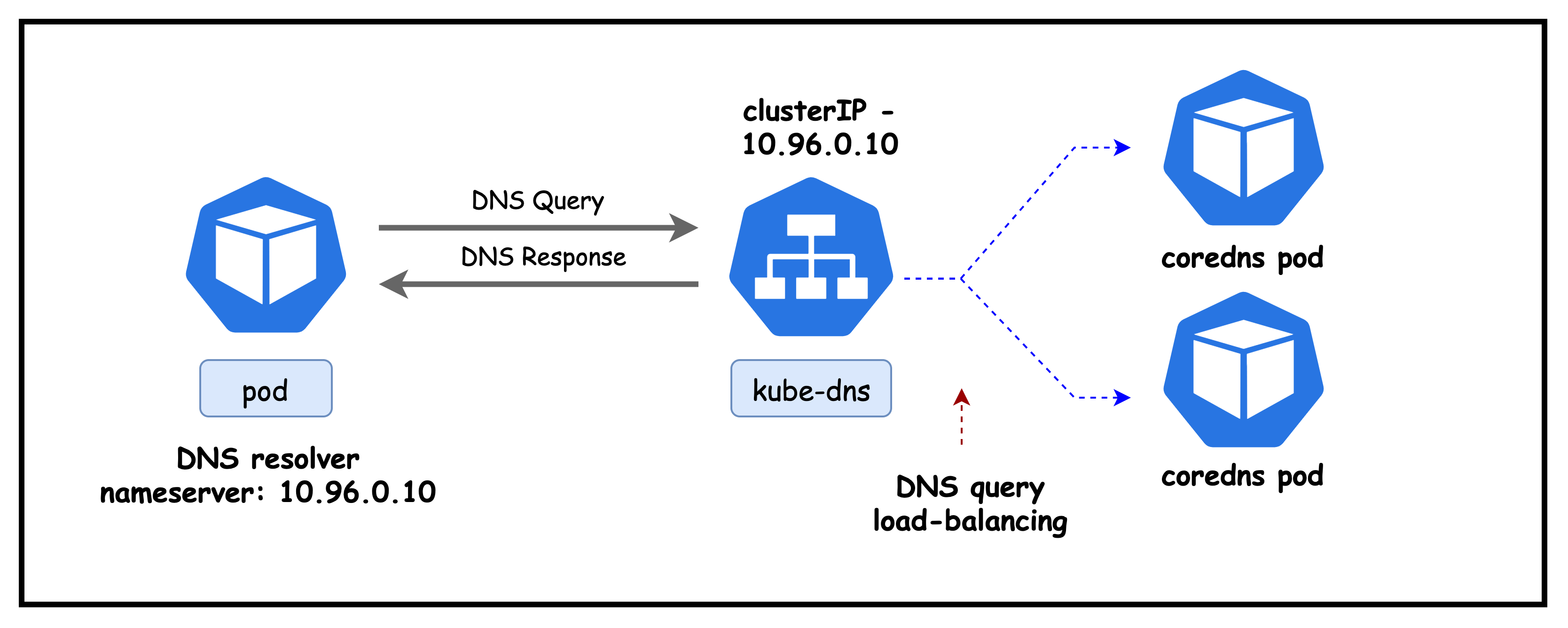

Lists the Endpoints behind the kube-dns Service (CoreDNS pods) that Pods actually reach.

• Addresses: 192.168.206.6, 192.168.206.7 are the IPs of the running CoreDNS pods in this cluster.
• Readiness: NotReadyAddresses: <none> indicates all CoreDNS endpoints are ready to serve queries.
• Ports: Exposes DNS over UDP/TCP on 53 and Prometheus metrics on 9153/TCP.
• Takeaway: The kube-dns ClusterIP load-balances to these CoreDNS endpoints; if resolution fails, verify these addresses and readiness first.

3.2 Verify coredns pods

Next, let's look at the coredns pods

kubectl get pods -n kube-system -l k8s-app=kube-dns -o wide

NAME                       READY   STATUS    RESTARTS   AGE     IP              NODE                    NOMINATED NODE   READINESS GATES
coredns-5dd5756b68-bnd2k   1/1     Running   0          7h23m   192.168.206.6   k8s-dns-control-plane   <none>           <none>
coredns-5dd5756b68-m65p4   1/1     Running   0          7h23m   192.168.206.7   k8s-dns-control-plane   <none>           <none>

kubectl get configmap -n kube-system coredns -o yaml

apiVersion: v1
data:
  Corefile: |
    .:53 {
        errors
        health {
           lameduck 5s
        }
        ready
        kubernetes cluster.local in-addr.arpa ip6.arpa {
           pods insecure
           fallthrough in-addr.arpa ip6.arpa
           ttl 30
        }
        prometheus :9153
        forward . /etc/resolv.conf {
           max_concurrent 1000
        }
        cache 30
        loop
        reload
        loadbalance
    }
kind: ConfigMap
metadata:
  creationTimestamp: "2025-09-13T17:34:57Z"
  name: coredns
  namespace: kube-system

Explanation of key CoreDNS Corefile directives:

• .:53: Serve DNS on all zones at port 53.
• kubernetes cluster.local ...: Serve cluster records; pods insecure enables A records for pod IPs; ttl 30 sets 30s TTL; fallthrough passes reverse lookups not matched to next plugin.
• forward . /etc/resolv.conf: Forward non-cluster queries to upstream resolvers from the node's resolv.conf.
• cache 30: Cache answers for 30 seconds to reduce latency/load.
• health, ready: Expose health/readiness endpoints used by k8s probes.
• prometheus :9153: Expose metrics for scraping.
• reload: Watches the Corefile for changes and reloads CoreDNS without a pod restart, so config updates take effect quickly.
• loadbalance: Randomizes the order of A/AAAA records and rotates upstreams to distribute client load more evenly across endpoints.
• loop: Detects and breaks DNS recursion loops (for example, misconfigurations where CoreDNS forwards to a resolver that ultimately forwards back to CoreDNS), preventing stack overflows and high CPU.

3.3 Inspect Host/Node Resolver

docker exec -it k8s-dns-worker /bin/bash
cat /etc/resolv.conf

# Generated by Docker Engine.
# This file can be edited; Docker Engine will not make further changes once it
# has been modified.

nameserver 172.18.0.1
search ec2.internal
options edns0 trust-ad ndots:0

# Based on host file: '/etc/resolv.conf' (internal resolver)
# ExtServers: [host(127.0.0.53)]
# Overrides: []
# Option ndots from: internal

Notes:

• nameserver 172.18.0.1: Node/container DNS points to the Docker bridge gateway (host resolver path).
• search ec2.internal: Short names get this suffix appended during resolution.
• options edns0 trust-ad ndots:0: EDNS enabled; trust AD-bit; ndots:0 treats names as absolute (no search expansion).

4. Inspect Pod DNS configuration

We exec into a running Pod to view its resolver settings. This shows how kubelet configures /etc/resolv.conf to point at the cluster DNS (CoreDNS) and which search domains and options are applied.

4.1 Inspect and Test DNS for Pod in the Default Namespace

kubectl exec -it multitool-1-8c8fb -- sh
cat /etc/resolv.conf

search default.svc.cluster.local svc.cluster.local cluster.local ec2.internal
nameserver 10.96.0.10
options ndots:5

• search: Suffixes appended to short names. From the default namespace, nginx expands to nginx.default.svc.cluster.local, then nginx.svc.cluster.local, then nginx.cluster.local, etc. The final ec2.internal comes from the node/environment.
• nameserver: ClusterIP of the kube-dns Service (CoreDNS). Pod DNS queries are sent here.
• options ndots:5: Names with fewer than 5 dots are treated as relative; the resolver tries search suffixes first before attempting an absolute FQDN, which can generate additional queries for short external names.

Kubernetes injects cluster search domains and points Pods at CoreDNS so short in-cluster names resolve automatically; ndots:5 means short external names may try those suffixes first.

Next let try to resolve a service name.

dig nginx-service

output concatenated

;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: SERVFAIL, id: 45816
;; flags: qr rd; QUERY: 1, ANSWER: 0, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; QUESTION SECTION:
;nginx-service.                 IN      A

;; Query time: 4 msec
;; SERVER: 10.96.0.10#53(10.96.0.10)

Explanation:

• Queries the bare name nginx-service without applying the Pod's search domains.
• dig shows the final question as the absolute name nginx-service. (no suffix applied).
• No such record exists in public/root DNS, so CoreDNS at 10.96.0.10 returns SERVFAIL.
• In Kubernetes, short Service names resolve when combined with cluster search suffixes (for example, nginx-service.<namespace>.svc.cluster.local) or by using dig +search nginx-service to apply /etc/resolv.conf search domains.

dig +search nginx-service

output concatenated

;; QUESTION SECTION:
;nginx-service.default.svc.cluster.local. IN A

;; ANSWER SECTION:
nginx-service.default.svc.cluster.local. 30 IN A 10.96.169.109

Explanation:

• +search tells dig to apply the Pod's search domains from /etc/resolv.conf.
• The short name nginx-service expands to nginx-service.default.svc.cluster.local (in the default namespace).
• CoreDNS returns the Service's ClusterIP, showing cluster service discovery via namespace search suffixes.

Next, let's exec into a multitool-3 pod in the foo namespace to examine it's DNS configuration.

4.2 Inspect and Test DNS for Pod in the foo Namespace

kubectl exec -it multitool-3-rbsdz -n foo -- sh
cat /etc/resolv.conf

search foo.svc.cluster.local svc.cluster.local cluster.local ec2.internal
nameserver 10.96.0.10
options ndots:5

• Namespace-specific search: Running in namespace foo sets the first search suffix to foo.svc.cluster.local (instead of default.svc.cluster.local).
• Short-name resolution: A name like nginx expands first to nginx.foo.svc.cluster.local, then falls back to broader cluster suffixes.
• Resolver target: nameserver 10.96.0.10 is the CoreDNS Service IP (kube-dns) used by all Pods.
• ndots behavior: With ndots:5, names with fewer than five dots are tried with search suffixes before being treated as absolute FQDNs.

dig +search nginx-service

;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: SERVFAIL, id: 7457
;; flags: qr rd; QUERY: 1, ANSWER: 0, AUTHORITY: 0, ADDITIONAL: 1

;; QUESTION SECTION:
;nginx-service.                 IN      A

Explanation:

• Pod context: Running in namespace foo, querying a Service in default using only the short name nginx-service.
• Search behavior: Resolver first tries nginx-service.foo.svc.cluster.local (does not exist), then ends up asking for the absolute name nginx-service.
• Result: nginx-service. isn't a valid public/root DNS record, so CoreDNS returns SERVFAIL.
• Fix: Include the namespace (nginx-service.default) or use the full FQDN nginx-service.default.svc.cluster.local for cross-namespace resolution.

dig +search nginx-service.default

output concatenated

;; QUESTION SECTION:
;nginx-service.default.svc.cluster.local. IN A

;; ANSWER SECTION:
nginx-service.default.svc.cluster.local. 30 IN A 10.96.169.109

Explanation:

• Adding the .default namespace gives the resolver enough context to expand the name to nginx-service.default.svc.cluster.local.
• CoreDNS resolves that FQDN to the Service's ClusterIP.
• Takeaway: Short names depend on the active namespace via search domains; including the namespace or using the full FQDN yields deterministic results.

Summary

This lab demonstrated how Kubernetes DNS works end to end.

• Kubelet configures each Pod's /etc/resolv.conf to use the kube-dns ClusterIP (CoreDNS) and injects namespace-scoped search domains.
• CoreDNS serves cluster DNS records (Services, and Pod A records via headless Services) and forwards external queries to upstream resolvers.
• Resolver options like ndots:5 drive search expansion; short names resolve within a namespace via search suffixes.
• Cross-namespace lookups need the namespace or full FQDN (for example, service.ns.svc.cluster.local).

Lab Cleanup

to cleanup the lab follow steps in Lab cleanup
